6-12V Motor Controller Arduino

12Volt DC Motor Controller Programmable

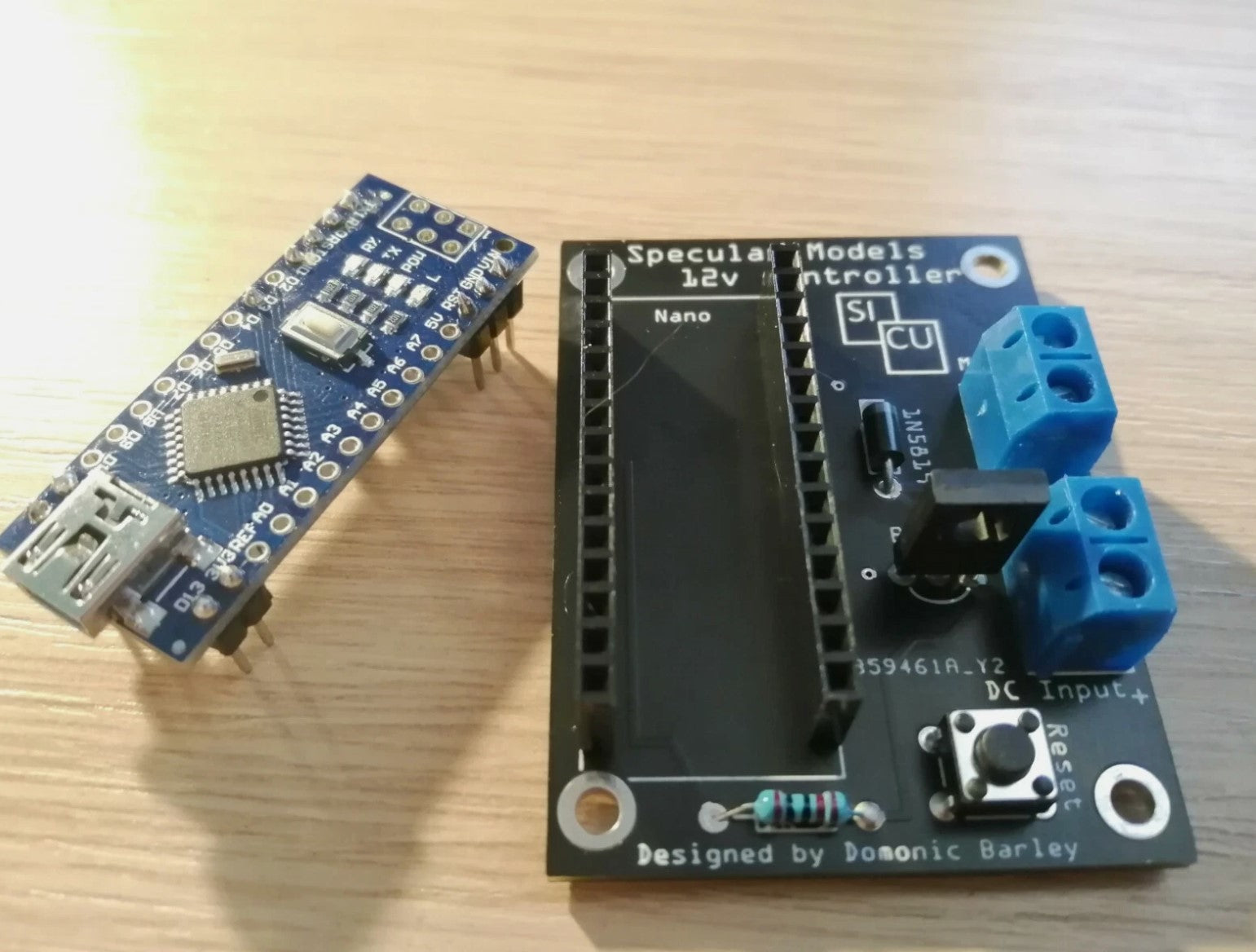

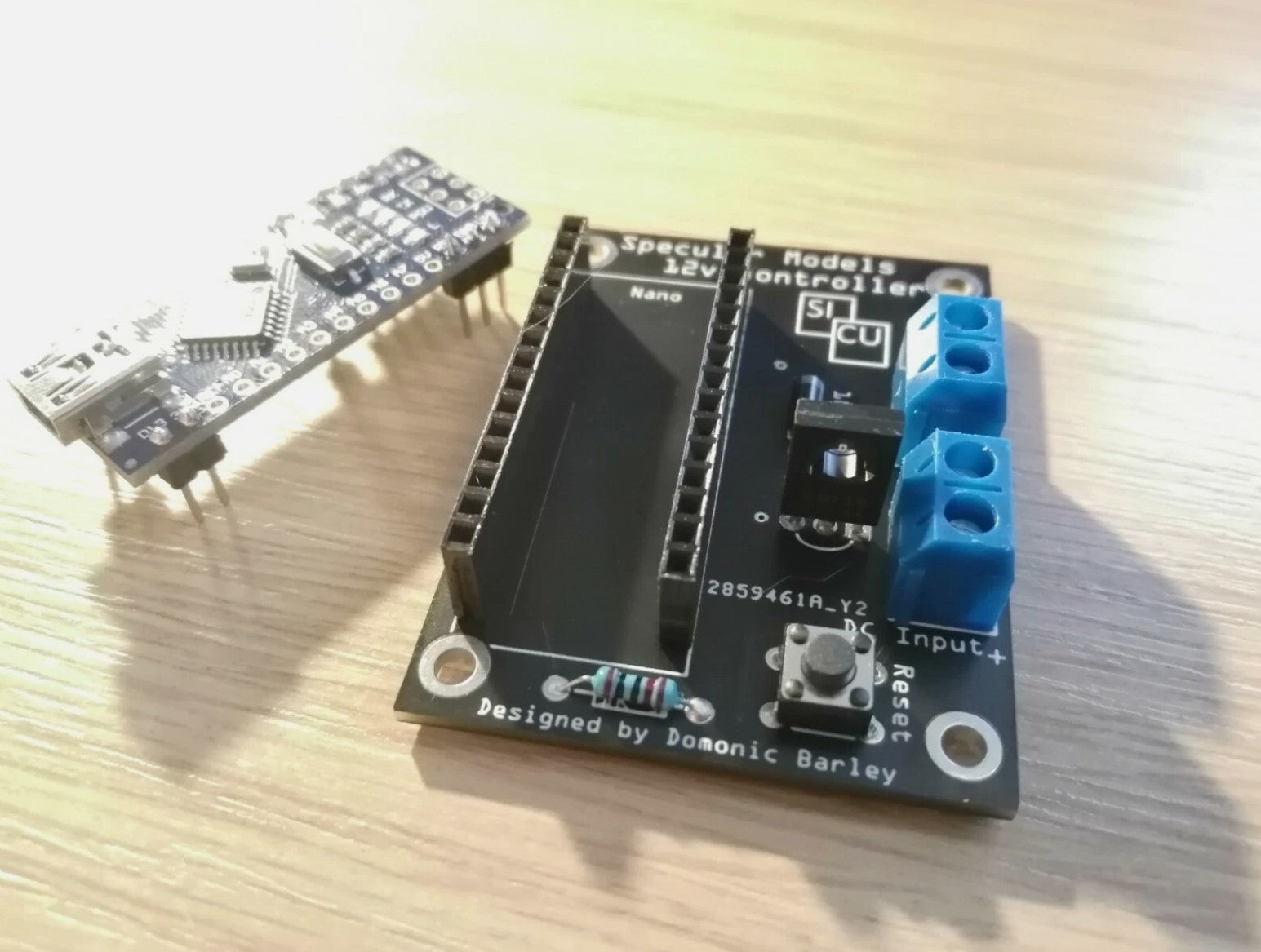

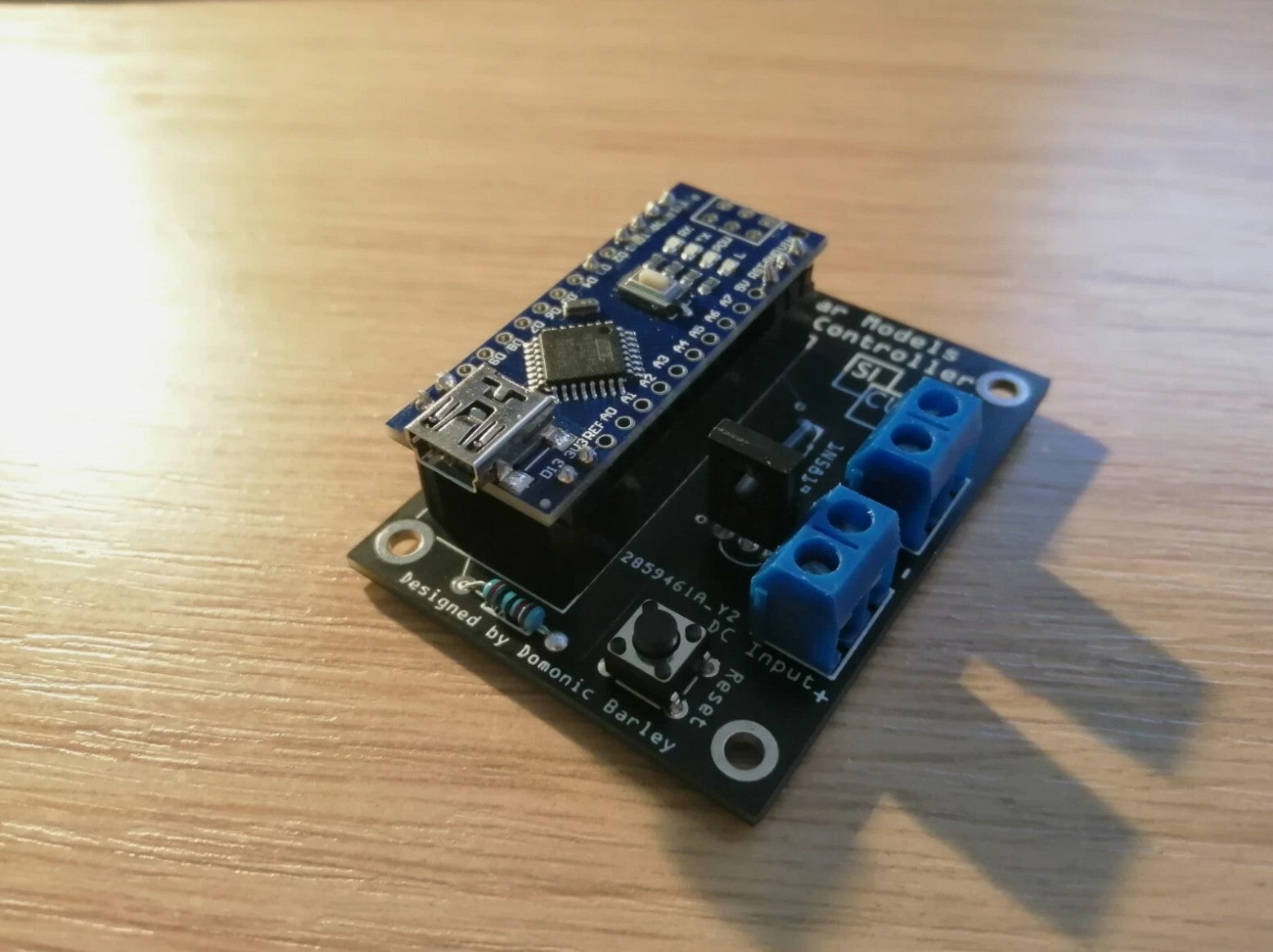

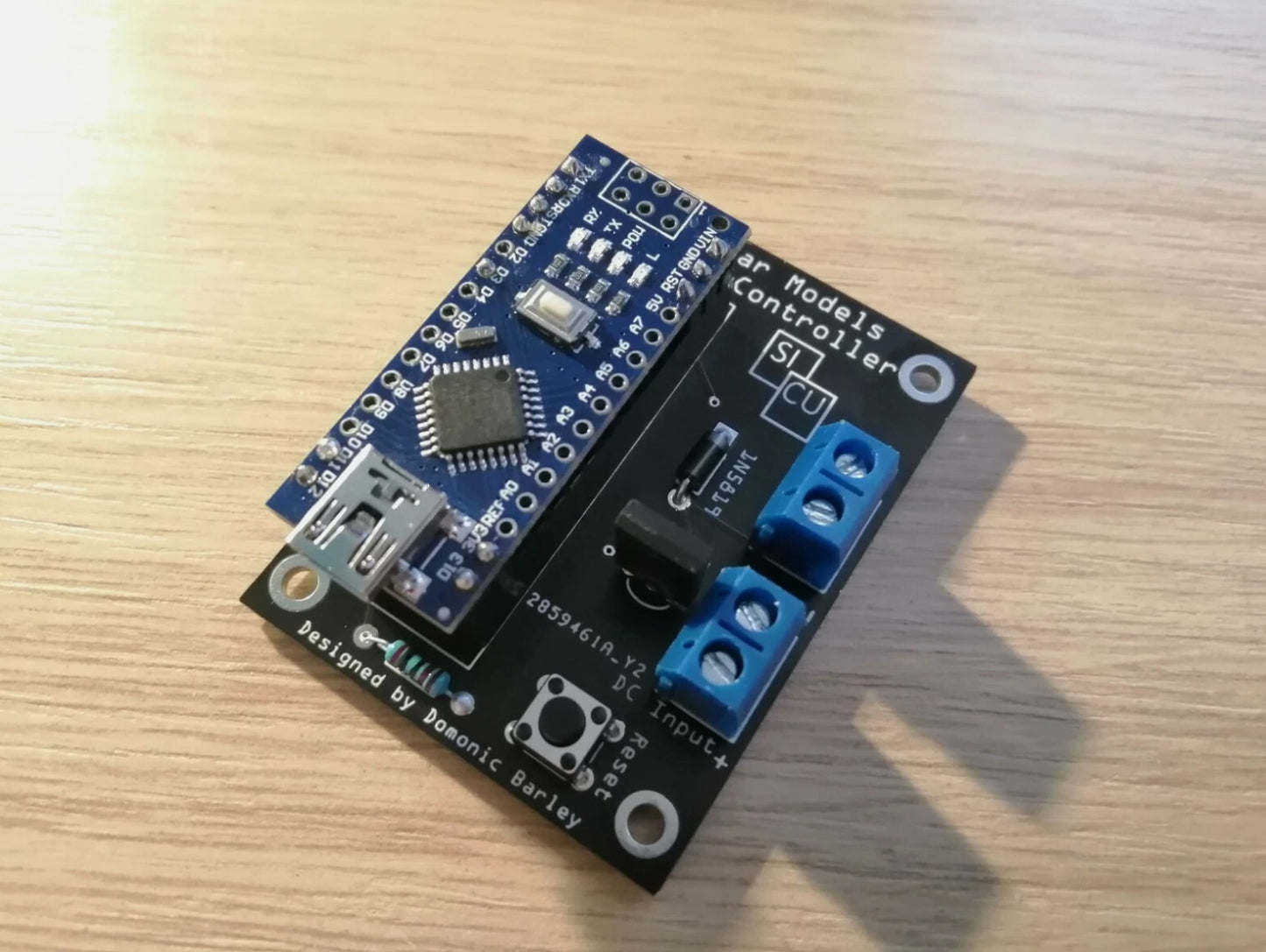

Custom made PCB board, runs on 12volts and programmed using an Arduino. I wanted something to run at shows showing a ride speed up/slow down and stopwithout having to touch the controls. Currently setup to speed to full speed and wait for 5 seconds then speed down and stop for 5 seconds.

The Arduino script that i use can be opened up and it explains what everything is inside if you wanted to change it about. (requires Arduino IDE (free download))

Made using the highest quality components and able to drive a 12V DC motor upto 1amp (haven't pushed this further, will go upto 2amp but untested)

This was also designed to fit into our Generator model. The 4mm Banana plugs are the best way to connect the inputs and outputs i have included both male and female with this kit.

**The variation that is unsoldered, I have done this as i for 1 enjoy building up my own electronics kit and is a forgotten skill among kids this motor will drive a dc motor from 6-12volts so can be used for lego or knex kits and in turn introduces you to the world of Arduino. **

Includes

Soldered:

              1x 12V Controller

              2x Red Female Plugs

              2x Black Female Plugs

              2x Black Male Plugs

              2x Red Male Plugs

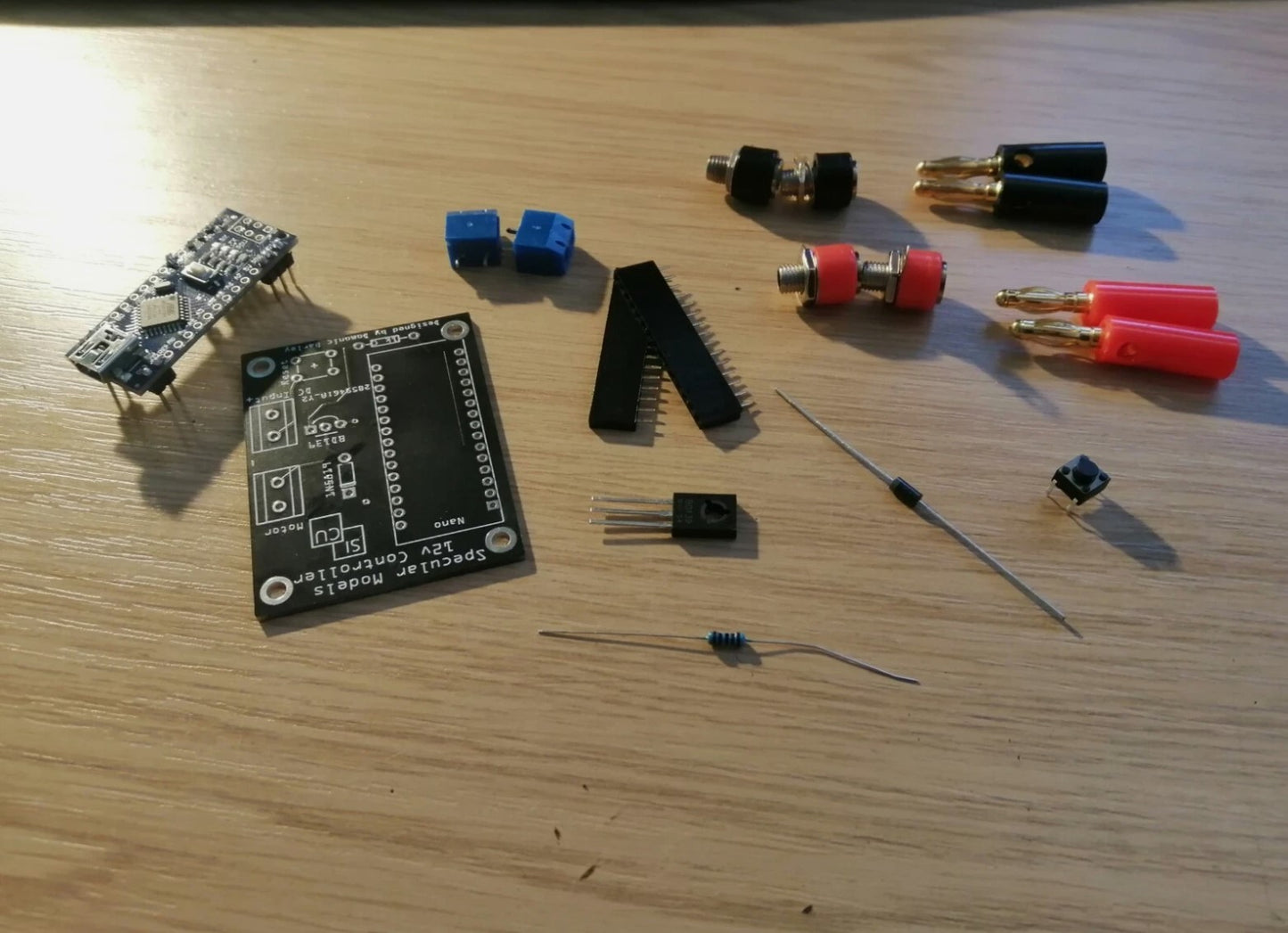

Unsoldered:

              1x Arduino Nano

              2x Pin Strips

              2x Terminal Blocks

              1x LN5819 Diode

              1x 1k Ohm Resistor

              1x BD139 Transistor

              1x Reset Switch

              1x Custom PCB Board

              2x Red Female Plugs

              2x Black Female Plugs

              2x Black Male Plugs

              2x Red Male Plugs
